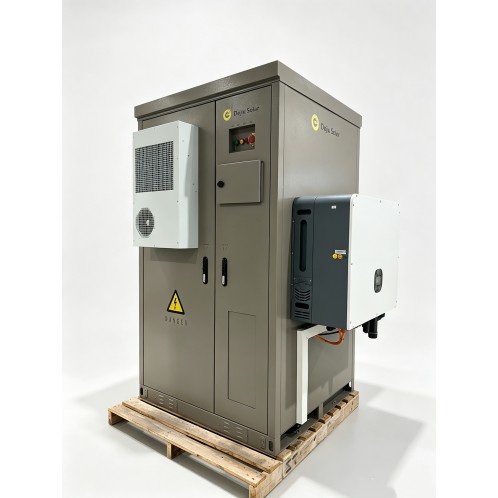

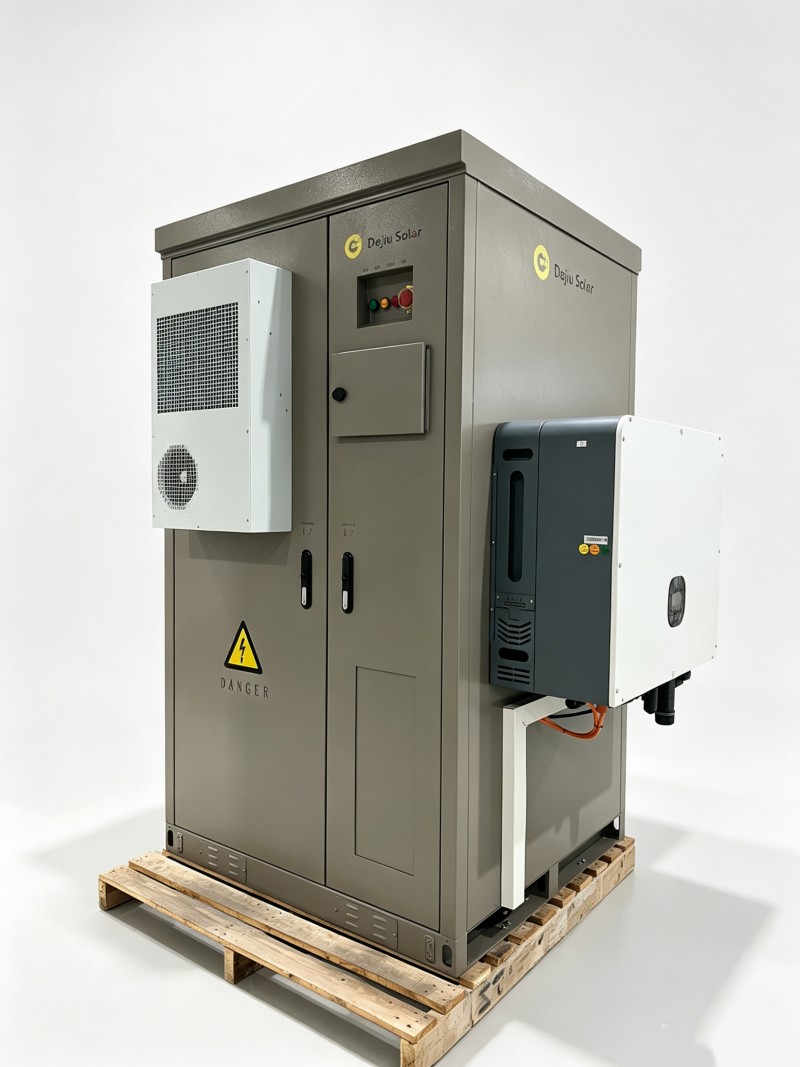

112KWh High-Voltage Outdoor Cabinet System (30KW)

The DH-0010 is a turnkey commercial energy storage system that integrates 7 packs of 314Ah LiFePO₄ batteries in series to deliver 358.4V / 314Ah with a 30KW built-in inverter. Designed for commercial buildings, EV charging stations, and small-to-medium factories, this all-in-one solution combines battery, PCS, BMS, EMS, thermal management, and fire suppression in a single IP54-rated outdoor cabinet. Factory pre-assembled and tested, the DH-0010 dramatically reduces installation time and costs – simply connect PV and grid on-site to start operation. Plug-and-play commercial storage, ready when you are.

Inquire Now

Product Details

参数类别 Parameter Category	参数项 Parameter Item	数值/描述（中文） Value / Description (CN)	数值/描述（英文） Value / Description (EN)
系统参数 System	总能量 Total Energy	112 KWh	112 KWh
	系统电压 System Voltage	358.4V DC	358.4V DC
	逆变器功率 Inverter Power	30 KW（内置）	30 KW (Built-in)
	电芯类型 Battery Type	磷酸铁锂（314Ah 叠片电芯）	LiFePO₄ (314Ah Prismatic)
	成组方式 Configuration	51.2V / 314Ah × 7个电池包串联（总电压358.4V / 314Ah）	51.2V / 314Ah × 7 Packs in Series (Total 358.4V / 314Ah)
结构参数 Mechanical	防护等级 Enclosure Rating	IP54（户外型）	IP54 (Outdoor Rated)
	散热方式 Cooling Method	智能风冷	Intelligent Air Cooling
	外形尺寸（宽×深×高） Dimensions (W×D×H)	（请补充）	(Please fill in)
	重量 Weight	（请补充）	(Please fill in)
接口与通讯 Interface	通讯协议 Communication	CAN / RS485 / Modbus TCP	CAN / RS485 / Modbus TCP
	电网交互功能 Grid Interface	支持黑启动、电网调频、峰谷套利	Supports black-start, frequency regulation, peak shaving
认证与质保 Compliance	产品认证 Certifications	CE， UN38.3， MSDS	CE, UN38.3, MSDS
	产品质保 Warranty	5年	5 Years
